4. EVB Interface Description

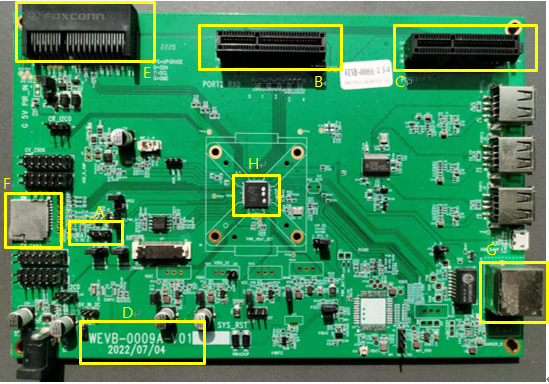

The picture below shows CV180x EVB

  1. UART Debug Port

  2. Sensor 0 EVB slot

  3. Sensor 1 EVB slot

  4. EVB version number

  5. Panel EVB slot

  6. SD card slot

  7. Ethernet 0 connection port

  8. Host IC CV180x

_images/image9.png

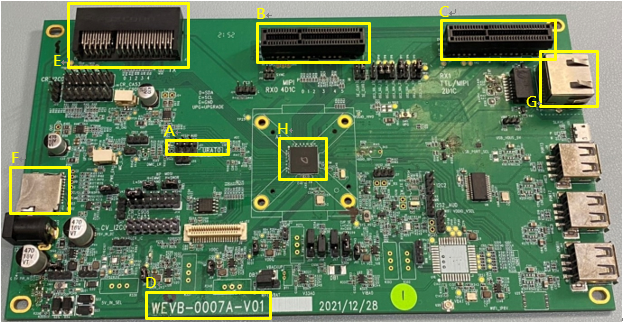

The picture below shows CV181x EVB

  1. UART Debug Port

  1. Sensor 0 EVB slot

  2. Sensor 1 EVB slot

  3. EVB version number

  4. Panel EVB slot

  5. SD card slot

  6. Ethernet 0 connection port

  7. Host IC CV181x
