1. TDL_SDK Introduction

TDL_SDK (Turnkey Deep Learning SDK) is an out-of-the-box deep learning algorithm SDK based on computing chip products. We are committed to providing users with algorithm libraries and applications that are cross-platform (end and edge), easy to use, resource-saving, and high-performance. It is based on modular design, abstracting base classes for functional modules of the same type, following high cohesion and low coupling, exposing only base classes to the outside without exposing specific implementations; it is also scalable and maintainable.

1.1. TDL_SDK Overall Structure

tdl_sdk/
├── CMakeLists.txt # Root CMake build script
├── build_tdl_sdk.sh # SDK build script
├── clang-format.sh # Code formatting script
├── clang-tidy.sh # Code static analysis script
├── .clang-format # Clang format configuration
├── .clang-tidy # Clang static analysis configuration
├── cmake/ # CMake related modules
│ ├── opencv.cmake # OpenCV dependency search
│ ├── middleware.cmake # Multimedia software dependency search
│ ├── mlir.cmake # MLIR dependency lookup
│ └── thirdparty.cmake # Third-party library dependency search
├── configs/ # Model parameter configuration file
├── docs/ # Document directory
│ ├── README.md # Documentation
│ ├── LICENSE # License file
│ ├── getting_started/ # Getting Started
│ ├── developer_guide/ # Developer documentation
│ ├── api_reference/ # API Reference Manual
│ └── images/ # Document image resources
├── include/ # Header file exported externally
│ ├── framework/ # Framework layer API
│ ├── components/ # Component API
│ ├── nn/ # Neural Network Model API
│ ├── app/ # App class API
│ ├── pipeline/ # Pipeline API
│ └── c_apis/ # C language API
├── src/ # Internal implementation
│ ├── framework/ # Framework layer implementation
│ │ ├── common/ # Common tool implementation
│ │ ├── image/ # Image processing implementation
│ │ ├── memory/ # Memory management implementation
│ │ ├── model/ # Model implementation
│ │ ├── net/ # Neural network implementation
│ │ ├── preprocess/ # Preprocessing implementation
│ │ ├── tensor/ # Tensor processing implementation
│ │ └── utils/ # General tool implementation
│ ├── components/ # Component implementation
│ │ ├── cv/ # Implementation of vision-related detection classes
│ │ ├── encoder/ # Implementation of encoding related functions
│ │ ├── ive/ # ive image processing function implementation
│ │ ├── llm/ # Large model class implementation
│ │ ├── matcher/ # Implementation of feature matching function
│ │ ├── network/ # Implementation of network components
│ │ ├── nn/ # Neural network model implementation
│ │ ├── tracker/ # Target tracking implementation
│ │ ├── snapshot/ # Snapshot implementation
│ │ └── video_decoder/ # Camera and decoding implementation
│ ├── c_apis/ # C API wrapper
│ └── python/ # Python bindings
├── sample/ # Sample code
│ ├── cpp/ # C++ example
│ ├── c/ # C example
│ └── python/ # Python example
├── evaluation/ # Performance evaluation
├── tool/ # Toolset
├── toolchain/ # Toolchain
├── scripts/ # scripts
└── README.md # Project Description

1.2. framework module

To achieve a unified framework for cross-platform model reasoning, models deployed based on this framework can run on multiple hardware platforms. The framework includes the following modules:

1. common

• Public definitions and tools, including error codes, logs, configuration, etc.

• Provide common functions used across modules

2. image

• Abstract encapsulation of image classes, supporting multiple image formats and data types

• Provide basic functions such as image reading, conversion, and processing

• Support OpenCV, VPSS and other backend implementations

3. memory

• Abstract encapsulation of memory pool class for efficient memory management

• Supports multiple memory types (system memory, device memory, etc.)

• Provide memory allocation, release and reuse mechanisms

4. model

• Abstract encapsulation of the model class, used to load and run neural network models

• Support multiple model formats (ONNX, TensorFlow, PyTorch, etc.)

• Provide model inference and optimization functions

5. net

• Encapsulation of neural network class interface for inference results

6. Preprocessing

• Abstract encapsulation of preprocessing class for image preprocessing

• Supports multiple preprocessing operations (scaling, cropping, normalization, etc.)

• Provides multiple backend implementations such as OpenCV, VPSS, etc.

7. tensor

• An abstract encapsulation of the tensor class, used to represent the input and output of the neural network model

• Support multiple data types and memory layouts

• Provides tensor operations and conversion functions

8. utils

• Encapsulation of tool interfaces, including timing counting, image alignment and calculation tools

1.3. components

Components related to specific algorithms include:

1. cv

• Implementation of vision-related detection classes

• Supports intrusion detection, motion detection and occlusion detection

2. encoder

• Implementation of encoding class interface

• Support rtsp streaming, real-time viewing of algorithm effects

3. ive

• ive image processing function implementation

• Use tpu for calculation

4. llm

• Large model implementation

• Support qwen and qwen2-VL

5. Matcher

• Implementation of feature matching function

• Supports computing using CPU or TPU

6. network

• Implementation of network functions

7. nn

• Implementation of various neural network models, such as target detection, face detection, license plate recognition, etc.

• Provide model loading, reasoning and result parsing functions

8. snapshot

• Implementation of snapshot function

9. track

• Target tracking algorithm implementation

• Support multiple tracking algorithms (KCF, SORT, DeepSORT, etc.)

10. video_decoder

• Camera and decoding function implementation

• Support multiple camera interfaces and decoding formats

1.4. other

1. c_apis: C language API encapsulation, providing cross-language call support

• Provides C interface corresponding to C++ API functions

• Support C language application integration

• Provide memory management and error handling mechanisms

2. Sample: Sample code that shows how to use the SDK

• C++ language examples, showing how to use the framework layer and component layer

• C language examples, showing how to use the C API

• Python language examples, showing how to use Python bindings

3. Evaluation: Performance evaluation, used to evaluate the performance of the SDK

• Provide performance testing and benchmarking capabilities

• Supports multiple performance indicators (throughput, latency, memory usage, etc.)

• Provide performance analysis and optimization suggestions

4. Tool: tool set, providing development and debugging support

• Model conversion tools

• Performance analysis tools

• Debugging and logging tools

5. Toolchain: Toolchain, providing compilation and building support

• Cross-compilation toolchain

• Dependent libraries and header files

• Build scripts and configuration

6. scripts: scripts, providing automation support

• Build script

• Test script

• Deployment script

2. TDL_SDK Environment Construction

2.1. Code Pulling and Overall Compilation

Except for the cmodel mode, TDL_SDK needs to rely on the sophpi sdk to run normally. The acquisition and compilation methods of the sophpi sdk are in the following URL:

https://github.com/sophgo/sophpi

Please follow the tutorial on the website to download the code. TDL_SDK will also be downloaded along with sophpi SDK. Before compiling, you need to execute export TPU_REL=1. Only in this way can TDL_SDK and other related libraries be compiled . The specific compilation process is as follows:

export TPU_REL=1
source build/envsetup_soc.sh
defconfig sg2002_wevb_riscv64_sd //You need to select the corresponding board model here
clean_all
build_all //Compile all components, including TDL_SDK

When compiling for the first time, be sure to complete the above steps.

2.2. TDL_SDK Compilation Method

After completing the above steps, you can compile only TDL_SDK. There are two compilation methods:

1. Compile using the pseudo target defined by makefile

build_tdl_sdk

If the compilation fails, use clean_tdl_sdk to clear the old compilation products and then recompile.

2. Compile using the build_tdl_sdk.sh script

cd tdl_sdk
./build_tdl_sdk.sh all

If the compilation fails, first use ./build_tdl_sdk.sh clean to clear the old compilation products and then recompile.

build_tdl_sdk.sh provides some compilation configurations for selection, as follows:

./build_tdl_sdk.sh sample //Compile only the sample. This is used when only the contents of the sample folder are modified to save compilation time.
./build_tdl_sdk.sh static //The compiled sample is a static file. Note that the static parameter only affects the sample. TDL_SDK will still compile static and dynamic libraries.
./build_tdl_sdk.sh debug //Introduce debug information during compilation, only used during debugging

2.3. Cmodel Mode

TDL_SDK supports cmodel mode, which can simulate the chip’s operation logic on the PC side, allowing the sample to run tests directly on the PC side simulating the chip side. The cmodel is used as follows:

1. Download third-party dependency libraries

cd tdl_sdk
./scripts/download_thirdparty.sh

2. Get compilation dependencies

./scripts/extract_cvitek_tpu_sdk.sh

3. Compile TDL_SDK

./build_tdl_sdk.sh CMODEL_CVITE

If the compilation fails, first use ./build_tdl_sdk.sh clean to clear the old compilation products and then recompile.

3. Model List

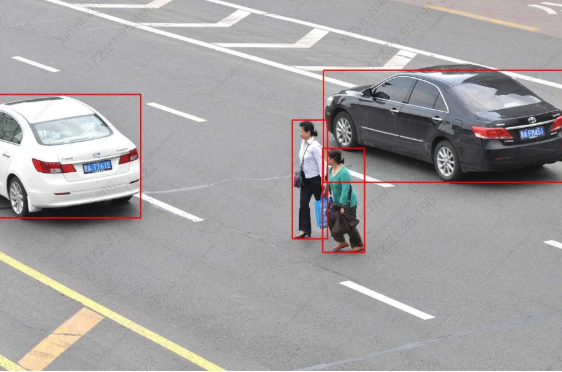

3.1. Object detection model list

Model Name	Description
TDL_MODEL_MBV2_DET_PERSON	Human Detection Model(0:person)
TDL_MODEL_YOLOV8N_DET_HAND	Hand Detection Model(0:hand)
TDL_MODEL_YOLOV8N_DET_PET _PERSON	Pet and Person Detection Model (0:cat, 1:dog, 2:person)
TDL_MODEL_YOLOV8N_DET_PERSON _VEHICLE	Person and Vehicle Detection Model (0:car, 1:bus, 2:truck, 3:motorcyclist, 4:person, 5:bicycle, 6:motorcycle)
TDL_MODEL_YOLOV8N_DET_HAND _FACE_PERSON	Hand, Face and Person Detection Model (0:hand, 1:face, 2:person)
TDL_MODEL_YOLOV8N_DET_HEAD _PERSON	Head Detection Model (0:person, 1:head)
TDL_MODEL_YOLOV8N_DET_HEAD _HARDHAT	Head and Hardhat Detection Model (0:head, 1:hardhat)
TDL_MODEL_YOLOV8N_DET_FIRE _SMOKE	Fire and Smoke Detection Model (0:fire, 1:smoke)
TDL_MODEL_YOLOV8N_DET_FIRE	Fire Detection Model (0:fire)
TDL_MODEL_YOLOV8N_DET_HEAD _SHOULDER	Head and Shoulder Detection Model (0:head-shoulder)
TDL_MODEL_YOLOV8N_DET_LICENSE _PLATE	License Plate Detection Model (0:license plate)
TDL_MODEL_YOLOV8N_DET_TRAFFIC _LIGHT	Traffic Light Detection Model (0:red, 1:yellow, 2:green, 3:off, 4:waiting)
TDL_MODEL_YOLOV8N_DET_MONITOR _PERSON	Person Detection Model(0:person)
TDL_MODEL_YOLOV5_DET_COCO80	YOLOv5 COCO80 Detection Model
TDL_MODEL_YOLOV6_DET_COCO80	YOLOv6 COCO80 Detection Model
TDL_MODEL_YOLOV7_DET_COCO80	YOLOv7 COCO80 Detection Model
TDL_MODEL_YOLOV8_DET_COCO80	YOLOv8 COCO80 Detection Model
TDL_MODEL_YOLOV10_DET_COCO80	YOLOv10 COCO80 Detection Model
TDL_MODEL_PPYOLOE_DET_COCO80	PPYOLOE COCO80 Detection Model
TDL_MODEL_YOLOX_DET_COCO80	YOLOX COCO80 Detection Model

3.2. Face detection model list

Model Name	Description
TDL_MODEL_SCRFD_DET_FACE	Face Detection Model (0:face + keypoints)
TDL_MODEL_RETINA_DET_FACE	Face Detection Model
TDL_MODEL_RETINA_DET_FACE_IR	Infrared Face Detection Model

3.3. Face attribute and keypoint model list

Model Name	Description
TDL_MODEL_KEYPOINT_FACE_V2	Face Detection Model with 5 Keypoints and Blur Score
TDL_MODEL_CLS_ATTRIBUTE_GENDER _AGE_GLASS	Face Attribute Classification Model (age, gender, glasses)
TDL_MODEL_CLS_ATTRIBUTE_GENDER _AGE_GLASS_MASK	Face Attribute Classification Model (age, gender, glasses, mask)
TDL_MODEL_CLS_ATTRIBUTE_GENDER _AGE_GLASS_EMOTION	Face Attribute Classification Model (age, gender, glasses, emotion)

3.4. Image classification model list

Model Name	Description
TDL_MODEL_CLS_MASK	Mask Detection Model (0:wearing mask, 1:not wearing mask)
TDL_MODEL_CLS_RGBLIVENESS	Liveness Detection Model (0:real, 1:fake)
TDL_MODEL_CLS_ISP_SCENE	ISP Scene Classification Model
TDL_MODEL_CLS_HAND_GESTURE	Hand Gesture Classification Model (0:fist, 1:five fingers, 2:none, 3:two)
TDL_MODEL_CLS_KEYPOINT_HAND _GESTURE	Hand Gesture Keypoint Classification Model (0:fist, 1:five fingers, 2:four fingers, 3:none, 4:ok, 5:one, 6:three, 7:three2, 8:two)

3.5. Sound classification model list

Model Name	Description
TDL_MODEL_CLS_SOUND_BABAY_CRY	Baby Cry Sound Classification Model (0:background, 1:crying)
TDL_MODEL_CLS_SOUND_COMMAND _NIHAOSHIYUN	Command Sound Classification Model (0:background, 1:nihaoshiyun)
TDL_MODEL_CLS_SOUND_COMMAND _NIHAOSUANNENG	Command Sound Classification Model (0:background, 1:nihaosuanneng)
TDL_MODEL_CLS_SOUND_COMMAND _XIAOAIXIAOAI	Command Sound Classification Model (0:background, 1:xiaoaixiaoai)
TDL_MODEL_CLS_SOUND_COMMAND	Command Sound Classification Model

3.6. Keypoint model list

Model Name	Description
TDL_MODEL_KEYPOINT_LICENSE _PLATE	License Plate Keypoint Detection Model

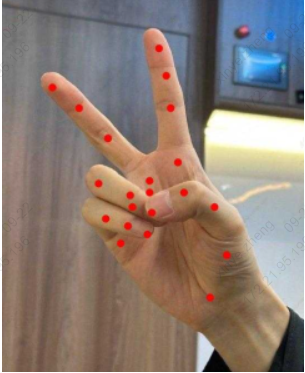

TDL_MODEL_KEYPOINT_HAND	Hand Keypoint Detection Model

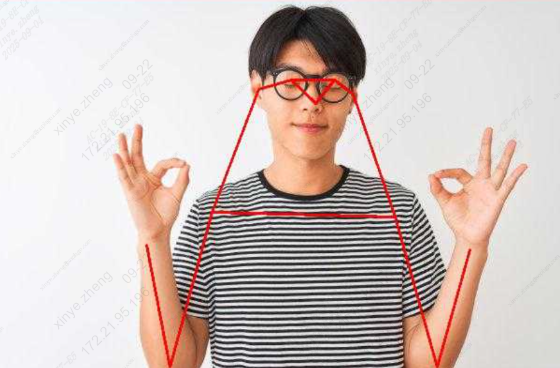

TDL_MODEL_KEYPOINT _YOLOV8POSE_PERSON17	Human 17 Keypoint Detection Model
TDL_MODEL_KEYPOINT _SIMCC_PERSON17	SIMCC 17 Keypoint Detection Model

3.7. Lane detection model list

Model Name	Descriptio

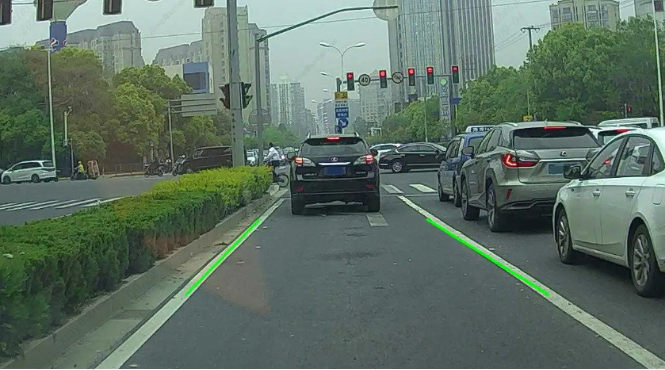

TDL_MODEL_LSTR_DET_LANE	Lane Detection Model

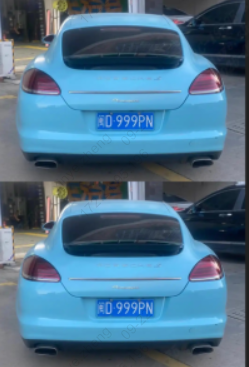

3.8. License plate recognition model list

Model Name	Descriptio
TDL_MODEL_RECOGNITION_LICENSE _PLATE	License Plate Recognition Model

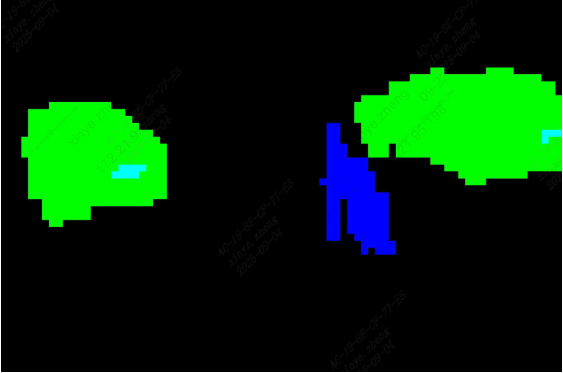

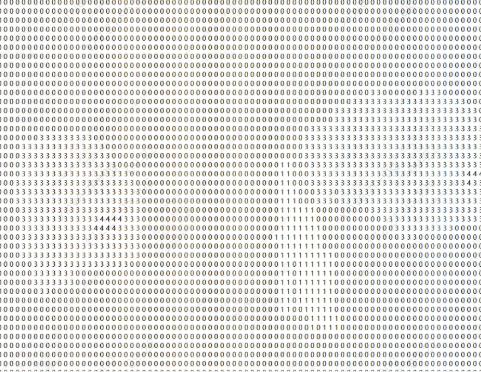

3.9. Segmentation model list

Model Name	Descriptio

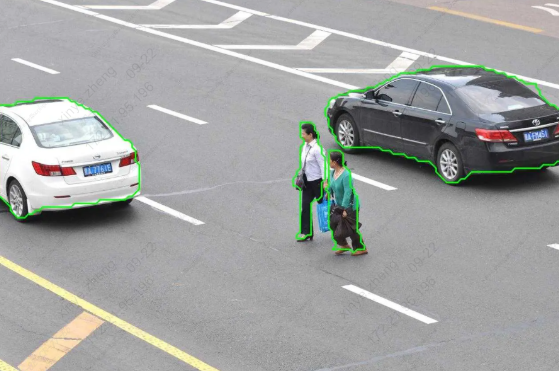

TDL_MODEL_YOLOV8_SEG_COCO80	YOLOv8 COCO80 Segmentation Model
TDL_MODEL_SEG_PERSON_FACE_VEHICLE	Person, Face and Vehicle Segmentation Model (0:background, 1:person, 2:face, 3:vehicle, 4:license plate)
TDL_MODEL_SEG_MOTION	Motion Segmentation Model (0:static, 2:transition, 3:motion)

3.10. Feature extraction model list

Model Name	Descriptio
TDL_MODEL_FEATURE_IMG	Image Feature Extraction Model
TDL_MODEL_IMG_FEATURE_CLIP	Image Clip Feature Extraction Model
TDL_MODEL_TEXT_FEATURE_CLIP	Text Clip Feature Extraction Model
TDL_MODEL_FEATURE_CVIFACE	cviface 256-dimensional Feature Extraction Model
TDL_MODEL_FEATURE_BMFACE_R34	ResNet34 512-dimensional Feature Extraction Model
TDL_MODEL_FEATURE_BMFACE_R50	ResNet50 512-dimensional Feature Extraction Model

4. Structure Reference

4.1. TDLDataTypeE

【Description】

Data Type Enumeration Class

【Definition】

typedef enum {
  TDL_TYPE_INT8 = 0, /**< Equals to int8_t. */
  TDL_TYPE_UINT8,    /**< Equals to uint8_t. */
  TDL_TYPE_INT16,    /**< Equals to int16_t. */
  TDL_TYPE_UINT16,   /**< Equals to uint16_t. */
  TDL_TYPE_INT32,    /**< Equals to int32_t. */
  TDL_TYPE_UINT32,   /**< Equals to uint32_t. */
  TDL_TYPE_BF16,     /**< Equals to bf17. */
  TDL_TYPE_FP16,     /**< Equals to fp16. */
  TDL_TYPE_FP32,     /**< Equals to fp32. */
  TDL_TYPE_UNKOWN    /**< Equals to unkown. */
} TDLDataTypeE;

【Members】

Data Type Enumeration	Description
TDL_TYPE_INT8	Signed 8-bit integer
TDL_TYPE_UINT8	Unsigned 8-bit integer
TDL_TYPE_INT16	Signed 16-bit integer
TDL_TYPE_UINT16	Unsigned 16-bit integer
TDL_TYPE_INT32	Signed 32-bit integer
TDL_TYPE_UINT32	Unsigned 32-bit integer
TDL_TYPE_BF16	16-bit floating point (1 sign bit, 8 exponent bits, 7 mantissa bits)
TDL_TYPE_FP16	16-bit floating point (1 sign bit, 5 exponent bits, 10 mantissa bits)
FTDL_TYPE_FP32	32-bit floating point

4.2. TDLBox

【Description】

Box coordinate data

【Definition】

typedef struct {
  float x1;
  float y1;
  float x2;
  float y2;
} TDLBox;

【Members】

Data Type	Description
x1	x coordinate of top-left corner
y1	y coordinate of top-left corner
x2	x coordinate of bottom-right corner
y2	y coordinate of bottom-right corner

4.3. TDLFeature

【Description】

Feature value data

【Definition】

typedef struct {
  int8_t *ptr;
  uint32_t size;
  TDLDataTypeE type;
} TDLFeature;

【Members】

Data Type	Description
ptr	Feature value data
size	Data size
type	Data type

4.4. TDLPoints

【Description】

Coordinate queue data

【Definition】

typedef struct {
  float *x;
  float *y;
  uint32_t size;
  float score;
} TDLPoints;

【Members】

Data Type	Description
x	x coordinate queue data
y	y coordinate queue data
size	Size of coordinate queue
score	Score

4.5. TDLLandmarkInfo

【Description】

Feature point information

【Definition】

typedef struct {
  float x;
  float y;
  float score;
} TDLLandmarkInfo;

【Members】

Data Type	Description
x	x coordinate of feature point
y	y coordinate of feature point
score	Score

4.6. TDLObjectInfo

【Description】

Object detection information

【Definition】

typedef struct {
  TDLBox box;
  float score;
  int class_id;
  uint32_t landmark_size;
  TDLLandmarkInfo *landmark_properity;
  TDLObjectTypeE obj_type;
} TDLObjectInfo;

【Members】

Data Type	Description
score	Object detection score
class_id	Object detection class id
landmark_size	Size of object detection feature points
TDLLandmarkInfo	Object detection feature point information
obj_type	Object detection type

4.7. TDLObject

【Description】

Object detection data

【Definition】

typedef struct {
  uint32_t size;
  uint32_t width;
  uint32_t height;

  TDLObjectInfo *info;
} TDLObject;

【Members】

Data Type	Description
size	Number of detected objects
width	Width of detection image
height	Height of detection image
info	Object detection information

4.8. TDLFaceInfo

【Description】

Face information

【Definition】

typedef struct {
  char name[128];
  float score;
  uint64_t track_id;
  TDLBox box;
  TDLPoints landmarks;
  TDLFeature feature;

  float gender_score;
  float glass_score;
  float age;
  float liveness_score;
  float hardhat_score;
  float mask_score;

  float recog_score;
  float face_quality;
  float pose_score;
  float blurness;
} TDLFaceInfo;

【Members】

Data Type	Description
name	Face name
score	Face score
track_id	Face tracking id
box	Face box information
landmarks	Face feature points
feature	Face feature value
gender_score	Face gender score
glass_score	Whether wearing glasses
age	Face age
liveness_score	Face liveness score
hardhat_score	Face hardhat score
recog_score	Face recognition score
face_quality	Face quality score
pose_score	Face pose score
blurness	Face blur degree

4.9. TDLFace

【Description】

Face data

【Definition】

typedef struct {
  uint32_t size;
  uint32_t width;
  uint32_t height;
  TDLFaceInfo *info;
} TDLFace;

【Members】

Data Type	Description
size	Number of faces
width	Width of face image
height	Height of face image
info	Face information

4.10. TDLClassInfo

【Description】

Classification information

【Definition】

typedef struct {
  int32_t class_id;
  float score;
} TDLClassInfo;

【Members】

Data Type	Description
class_id	Classification class
score	Classification score

4.11. TDLClass

【Description】

Classification data

【Definition】

typedef struct {
  uint32_t size;
  TDLClassInfo *info;
} TDLClass;

【Members】

Data Type	Description
size	Number of classifications
info	Classification information

4.12. TDLKeypointInfo

【Description】

Keypoint information

【Definition】

typedef struct {
  float x;
  float y;
  float score;
} TDLKeypointInfo;

【Members】

Data Type	Description
x	x coordinate of keypoint
y	y coordinate of keypoint
score	Keypoint score

4.13. TDLKeypoint

【Description】

Keypoint data

【Definition】

typedef struct {
  uint32_t size;
  uint32_t width;
  uint32_t height;
  TDLKeypointInfo *info;
} TDLKeypoint;

【Members】

Data Type	Description
size	Number of keypoints
width	Image width
height	Image height
info	Keypoint information

4.14. TDLSegmentation

【Description】

Semantic segmentation data

【Definition】

typedef struct {
  uint32_t width;
  uint32_t height;
  uint32_t output_width;
  uint32_t output_height;
  uint8_t *class_id;
  uint8_t *class_conf;
} TDLSegmentation;

【Members】

Data Type	Description
width	Image width
height	Image height
output_width	Output image width
output_height	Output image height
class_id	Classification class
class_conf	Classification coordinate information

4.15. TDLInstanceSegInfo

【Description】

Instance segmentation information

【Definition】

typedef struct {
  uint8_t *mask;
  float *mask_point;
  uint32_t mask_point_size;
  TDLObjectInfo *obj_info;
} TDLInstanceSegInfo;

4.16. TDLInstanceSeg

【Description】

Instance segmentation data

【Definition】

typedef struct {
  uint32_t size;
  uint32_t width;
  uint32_t height;
  uint32_t mask_width;
  uint32_t mask_height;
  TDLInstanceSegInfo *info;
} TDLInstanceSeg;

【Members】

Data Type	Description
size	Number of instance segmentations
width	Image width
height	Image height
mask_width	Mask width
mask_height	Mask height
info	Instance segmentation information

4.17. TDLLanePoint

【Description】

Lane detection coordinate points

【Definition】

typedef struct {
  float x[2];
  float y[2];
  float score;
} TDLLanePoint;

【Members】

Data Type	Description
x	x coordinate queue
y	y coordinate queue
score	Lane detection score

4.18. TDLLane

【Description】

Lane detection data

【Definition】

typedef struct {
  uint32_t size;
  uint32_t width;
  uint32_t height;
  TDLLanePoint *lane;
  int lane_state;
} TDLLane;

【Members】

Data Type	Description
size	Number of lane detections
width	Image width
height	Image height
lane	Lane detection coordinate points
lane_state	Lane state

4.19. TDLDepthLogits

【Description】

Depth estimation data

【Definition】

typedef struct {
  int w;
  int h;
  int8_t *int_logits;
} TDLDepthLogits;

【Members】

Data Type	Description
w	Image width
h	Image height
int_logits	Depth estimation information

4.20. TDLTracker

【Description】

Tracking data

【Definition】

typedef struct {
  uint32_t size;
  uint64_t id;
  TDLBox bbox;
  int out_num;
} TDLTracker;

【Members】

Data Type	Description
size	Number of tracked targets
id	Tracking target ID
bbox	Tracking target bounding box
out_num	Number of times target is out of frame

4.21. TDLOcr

【Description】

Text recognition data

【Definition】

typedef struct {
  uint32_t size;
  char* text_info;
} TDLOcr;

【Members】

Data Type	Description
size	Number of text recognitions
text_info	Text recognition information

4.22. TDLSnapshotInfo

【Description】

Snapshot information

【Definition】

typedef struct {
  float quality;
  uint64_t snapshot_frame_id;
  uint64_t track_id;
  bool male;
  bool glass;
  uint8_t age;
  uint8_t emotion;
  TDLImage object_image;
} TDLSnapshotInfo;

【Members】

Data Type	Description
quality	The quality of the captured image
snapshot_frame_id	Frame ID
track_id	Tracking ID
male	Gender score
glass	Glasses score
age	Age score
emotion	Emotional state
object_image	The captured image object

4.23. TDLCaptureInfo

【Description】

Capture parameter structure

【Definition】

typedef struct {
  uint32_t snapshot_size;
  uint64_t frame_id;
  uint32_t frame_width;
  uint32_t frame_height;
  TDLFace face_meta;
  TDLObject person_meta;
  TDLObject pet_meta;
  TDLTracker track_meta;
  TDLSnapshotInfo *snapshot_info;
  TDLFeature *features;
  TDLImage image;
} TDLCaptureInfo;

【Members】

Data Type	Description
snapshot_size	Number of snapshots
frame_id	Frame ID
frame_width	Frame width
frame_height	Frame height
face_meta	Facial data
person_meta	Pedestrian data
pet_meta	Pet data
track_meta	Tracking data
snapshot_info	Snapshot information
features	Eigenvalue information
image	Original image for detection

4.24. TDLObjectCountingInfo

【Description】

Passenger flow statistics

【Definition】

typedef struct {
  uint64_t frame_id;
  uint32_t frame_width;
  uint32_t frame_height;
  uint32_t enter_num;
  uint32_t miss_num;
  int counting_line[4];
  TDLObject object_meta;
  TDLImage image;
} TDLObjectCountingInfo;

【Members】

Data Type	Description
frame_id	Frame ID
frame_width	Frame width
frame_height	Frame height
enter_num	Number of entries
miss_num	The amount of outgoing
counting_line	Crossing line, usually located at the key channel
object_meta	Target object data
image	Original image for detection

4.25. TDLIspMeta

【Description】

ISP data

【Definition】

typedef struct {
  float awb[3];  // rgain, ggain, bgain
  float ccm[9];  // rgb[3][3]
  float blc;
} TDLIspMeta;

【Members】

Data Type	Description
awb	White balance information
ccm	Color information
blc	Black level information

5. API Reference

5.1. Handles

【Syntax】

typedef void *TDLHandle;
typedef void *TDLHandleEx;
typedef void *TDLImage;

【Description】

TDL SDK handles, TDLHandle is the core operation handle, TDLHandleEx is the extended operation handle, TDLImage is the image data abstraction handle.

5.2. TDL_CreateHandle

【Syntax】

TDLHandle TDL_CreateHandle(const int32_t tpu_device_id);

【Description】

Create a TDLHandle object for the management of the TDL API, which is used when using the API in the core library (libtdl_core.a or libtdl_core.so).

【Parameters】

	Data Type	Parameter Name	Description
Input	const int32_t	tpu_device_id	Specified TPU device ID

5.3. TDL_CreateHandleEx

【Syntax】

TDLHandleEx TDL_CreateHandleEx(const int32_t tpu_device_id);

【Description】

Create a TDLHandleEx object for managing the TDL extended API, which is used when using the API in the extended library (libtdl_ex.a or libtdl_ex.so).

【Parameters】

	Data Type	Parameter Name	Description
Input	const int32_t	tpu_device_id	Specified TPU device ID

5.4. TDL_DestroyHandle

【Syntax】

int32_t TDL_DestroyHandle(TDLHandle handle);

【Description】

Destroys a TDLHandle object, used when using APIs in the core library (libtdl_core.a or libtdl_core.so).

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object to be destroyed

5.5. TDL_DestroyHandleEx

【Syntax】

int32_t TDL_DestroyHandleEx(TDLHandleEx handle);

【Description】

Destroy a TDLHandleEx object, which is used when using APIs in the extension library (libtdl_ex.a or libtdl_ex.so).

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandleEx object to be destroyed

5.6. TDL_WrapVPSSFrame

【Syntax】

TDLImage TDL_WrapVPSSFrame(void *vpss_frame, bool own_memory);

【Description】

Wraps a VPSS frame as a TDLImage object, where the frame can be a frame obtained through the multimedia interface (For example, CVI_VPSS_GetChnFrame); it can also be a frame encapsulated by itself, as shown below.

VIDEO_FRAME_INFO_S Frame;
memset(&Frame, 0, sizeof(VIDEO_FRAME_INFO_S));
Frame.stVFrame.pu8VirAddr[0] = buffer; // virtual address of data
Frame.stVFrame.u32Height = 1; // The height of the data. This example is one-dimensional data, so it is 1 here.
Frame.stVFrame.u32Width = u32BufferSize; // The width of the data. The example is one-dimensional data. Here is the data amount

TDLImage image = TDL_WrapVPSSFrame((void *)&Frame, false); // Call the interface to create an image

【Parameters】

	Data Type	Parameter Name	Description
Input	void*	vpss_frame	VPSS frame to be wrapped
Input	bool	own_memory	Whether to own the memory

5.7. TDL_ReadImage

【Syntax】

TDLImage TDL_ReadImage(const char *path);

【Description】

Read an image as a TDLImage object, supporting common input formats such as jpg, png, bmp, jp2, sr, and tiff .

【Parameters】

	Data Type	Parameter Name	Description
Input	const char*	path	Image path

5.8. TDL_ReadBin

【Syntax】

TDLImage TDL_ReadBin(const char *path, int count, TDLDataTypeE data_type);

【Description】

Read file content as a TDLImageHandle object.

【Parameters】

	Data Type	Parameter Name	Description
Input	const char*	path	Binary file path
Input	int	count	Data count in file
Input	TDLDataTypeE	data_type	Input data type

5.9. TDL_DestroyImage

【Syntax】

int32_t TDL_DestroyImage(TDLImage image_handle);

【Description】

Destroy a TDLImage object. When you finish using a TDLImage object, you must call this interface to release the memory.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLImage	image_handle	TDLImageHandle object to be destroyed

5.10. TDL_OpenModel

【Syntax】

int32_t TDL_OpenModel(TDLHandle handle,
                                    const TDLModel model_id,
                                    const char *model_path,
                                    const char *model_config_json);

【Description】

Loads a model of the specified type into a TDLHandle object. For the parameter model_config_json, NULL can be passed if it is loaded using TDL_LoadModelConfig. Without using TDL_LoadModelConfig to load, most proprietary models can also pass in NULL, in which case the default configuration inside the algorithm class will be used. Some common models, such as feature extraction and voice commands, require model configuration information to be passed in. Please refer to configs/model/model_config.json.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	const char*	model_path	The path of the model configuration file. The file path is in tdl_sdk/install/CV184X/configs/model/. If the model does not require special parameters, it can be NULL

5.11. TDL_OpenModelFromBuffer

【Syntax】

int32_t TDL_OpenModelFromBuffer(TDLHandle handle,
                                                  const TDLModel model_id,
                                                  const uint8_t *model_buffer,
                                                  uint32_t model_buffer_size,
                                                  const char *model_config_json);

【Description】

Loads a model of the specified type into a TDLHandle object, passing the parameter by address. For the parameter model_config_json, NULL can be passed if it is loaded using TDL_LoadModelConfig; Without using TDL_LoadModelConfig to load, most proprietary models can also pass in NULL, in which case the default configuration inside the algorithm class will be used. Some common models, such as feature extraction and voice commands, require model configuration information to be passed in. Please refer to configs/model/model_config.json.

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	const char*	model_path	The path of the model configuration file. The file path is in tdl_sdk/install/CV184X/configs/model/. If the model does not require special parameters, it can be NULL

5.12. TDL_CloseModel

【Syntax】

int32_t TDL_CloseModel(TDLHandle handle,
                                    const TDLModel model_id);

【Description】

Unload the specified type of model and release related resources.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration

5.13. TDL_Detection

【Syntax】

int32_t TDL_Detection(TDLHandle handle,
                                  const TDLModel model_id,
                                  TDLImage image_handle,
                                  TDLObject *object_meta);

【Description】

Performs inference detection on the specified model and returns the detection result metadata. For detailed examples, see tdl_sdk/sample/c/sample_object_detection.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLObject*	object_meta	Output detection result metadata

5.14. TDL_FaceDetection

【Syntax】

int32_t TDL_FaceDetection(TDLHandle handle,
                                        const TDLModel model_id,
                                        TDLImage image_handle,
                                        TDLFace *face_meta);

【Description】

Perform face detection and return face detection result metadata. For detailed examples, see tdl_sdk/sample/c/sample_face_detection.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLFace*	face_meta	Output face detection result metadata

5.15. TDL_FaceAttribute

【Syntax】

int32_t TDL_FaceAttribute(TDLHandle handle,
                                        const TDLModel model_id,
                                        TDLImage image_handle,
                                        TDLFace *face_meta);

【Description】

To perform facial attribute analysis, you need to use the detected face frame for feature analysis. The model will crop the image internally to improve accuracy. Therefore, before calling this interface, it is best to call TDL_FaceDetection to obtain the face frame image. For detailed examples, please refer to tdl_sdk/sample/c/sample_face_attribute.c. If there is no box map data in face_meta, no cropping is performed.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Input/Output	TDLFace*	face_meta	Input face detection results, output additional attribute information

5.16. TDL_FaceLandmark

【Syntax】

int32_t TDL_FaceLandmark(TDLHandle handle,
                                        const TDLModel model_id,
                                        TDLImage image_handle,
                                        TDLImage *crop_image_handle,
                                        TDLFace *face_meta);

【Description】

Perform facial key point detection and add key point coordinates to the existing face detection results. The model will crop the image internally to improve accuracy. Therefore, before calling this interface, it is best to call TDL_FaceDetection to obtain the face frame image. For detailed examples, please refer to tdl_sdk/sample/c/sample_face_recognition.c. If there is no box map data in face_meta, no cropping is performed.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Input	TDLImage	crop_image_handle	TDLImageHandle object, the cropped image. It will not take effect if it is NULL.
Input/Output	TDLFace*	face_meta	Input face detection results, output additional keypoint coordinates

5.17. TDL_Classification

【Syntax】

int32_t TDL_Classification(TDLHandle handle,
                                        const TDLModel model_id,
                                        TDLImage image_handle,
                                        TDLClassInfo *class_info);

【Description】

Performs general classification recognition, including liveness recognition, speech recognition, and gesture recognition. For details, see tdl_sdk/sample/c/sample_classification.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLClassInfo*	class_info	Output classification results

5.18. TDL_InstanceSegmentation

【Syntax】

int32_t TDL_InstanceSegmentation(TDLHandle handle,
                                                  const TDLModel model_id,
                                                  TDLImage image_handle,
                                                  TDLInstanceSeg *inst_seg_meta);

【Description】

Perform instance segmentation to detect the pixel-level outline of each individual object in the image. For details, please refer to tdl_sdk/sample/c/sample_instance_segmentation.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLInstanceSeg*	inst_seg_meta	Output instance segmentation results (including mask and bbox)

5.19. TDL_SemanticSegmentation

【Syntax】

int32_t TDL_SemanticSegmentation(TDLHandle handle,
                                                    const TDLModel model_id,
                                                    TDLImage image_handle,
                                                    TDLSegmentation *seg_meta);

【Description】

Perform semantic segmentation to classify images at the pixel level. For details, please refer to tdl_sdk/sample/c/sample_semantic_segmentation.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLSegmentation*	seg_meta	Output segmentation results (label map)

5.20. TDL_FeatureExtraction

【Syntax】

int32_t TDL_FeatureExtraction(TDLHandle handle,
                                             const TDLModel model_id,
                                             TDLImage image_handle,
                                             TDLFeature *feature_meta);

【Description】

Extract the depth feature vector of the image. In order to improve the detection accuracy, the input image is preferably processed by cropping or alignment. Please refer to tdl_sdk/sample/c/sample_face_recognition.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLFeature*	feature_meta	Output feature vector

5.21. TDL_LaneDetection

【Syntax】

int32_t TDL_LaneDetection(TDLHandle handle,
                                        const TDLModel model_id,
                                        TDLImage image_handle,
                                        TDLLane *lane_meta);

【Description】

Detect road lane lines and their attributes. For details, please refer to tdl_sdk/sample/c/sample_lane_detection.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLLane*	lane_meta	Output lane line coordinates and attributes

5.22. TDL_Tracking

【Syntax】

int32_t TDL_Tracking(TDLHandle handle,
                                  const TDLModel model_id,
                                  TDLImage image_handle,
                                  TDLObject *object_meta,
                                  TDLTracker *tracker_meta);

【Description】

Multi-target tracking, cross-frame target association based on detection results. For details, please refer to tdl_sdk/sample/c/sample_tracking.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Input/Output	TDLObject*	object_meta	Input detection results, output tracking IDs
Output	TDLTracker*	tracker_meta	Output tracker status information

5.23. TDL_SetSingleObjectTracking

【Syntax】

int32_t TDL_SetSingleObjectTracking(TDLHandle handle,
                                                      TDLImage image_handle,
                                                      TDLObject *object_meta,
                                                      int *set_values,
                                                      int size);

【Description】

Monocular tracking sets the tracking target. It should be used in conjunction with TDL_Detection according to the scene. For details, please refer to tdl_sdk/sample/c/camera/sample_vi_single_object_tracking.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	TDLImage	image_handle	TDLImage object
Input	TDLObject*	object_meta	Current frame detection result
Input/Output	int*	set_values	Tracking targets. Supports the following three methods: 1. Pass in the target frame coordinates (x1, y1, x2, y2); 2. Pass in the position (x, y) of a point in the image (object_meta size cannot be 0 in this case); 3. Pass in the index of a target in object_meta (object_meta size cannot be 0 in this case)
Input	int	size	set_values number of elements (can only be 1, 2 or 4)

5.24. TDL_SingleObjectTracking

【Syntax】

int32_t TDL_SingleObjectTracking(TDLHandle handle,
                                                  TDLImage image_handle,
                                                  TDLTracker *track_meta,
                                                  uint64_t frame_id);

【Description】

Perform monocular tracking. For details, see tdl_sdk/sample/c/camera/sample_vi_single_object_tracking.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	TDLImage	image_handle	TDLImage object
Input	TDLTracker*	track_meta	Tracking results
Input	uint64_t	frame_id	Frame id

5.25. TDL_CharacterRecognition

【Syntax】

int32_t TDL_CharacterRecognition(TDLHandle handle,
                                                  const TDLModel model_id,
                                                  TDLImage image_handle,
                                                  TDLOcr *char_meta);

【Description】

Character recognition supports text detection and recognition. In order to improve the detection accuracy, the input image is preferably processed by cropping or alignment. Please refer to tdl_sdk/sample/c/sample_licence_recognition.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLOcr*	char_meta	Output recognition results (text content and position)

5.26. TDL_LoadModelConfig

【Syntax】

int32_t TDL_LoadModelConfig(TDLHandle handle,
                                            const char *model_config_json_path);

【Description】

Load model configuration information, after loading you can open models using only model IDs.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const char*	model_config_json_path	Model configuration file path, if NULL, defaults to configs/model/model_config.json

5.27. TDL_SetModelDir

【Syntax】

int32_t TDL_SetModelDir(TDLHandle handle,
                                      const char *model_dir);

【Description】

Set the model directory path.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const char*	model_dir	Path to tdl_models repository (subfolders for different platforms)

5.28. TDL_SetModelThreshold

【Syntax】

int32_t TDL_SetModelThreshold(TDLHandle handle,
                                              const TDLModel model_id,
                                              float threshold);

【Description】

Set the model threshold value.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	float	threshold	Model threshold value

5.29. TDL_IspClassification

【Syntax】

int32_t TDL_IspClassification(TDLHandle handle,
                                          const TDLModel model_id,
                                          TDLImage image_handle,
                                          TDLIspMeta *isp_meta,
                                          TDLClass *class_info);

【Description】

Execute ISP image classification task.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Input	TDLIspMeta*	isp_meta	Input ISP related data
Output	TDLClass*	class_info	Output classification results

5.30. TDL_Keypoint

【Syntax】

int32_t TDL_Keypoint(TDLHandle handle,
                                  const TDLModel model_id,
                                  TDLImage image_handle,
                                  TDLKeypoint *keypoint_meta);

【Description】

To perform key point detection tasks, in order to improve detection accuracy, the input image is preferably a cropped image. For specific examples, please refer to tdl_sdk/sample/c/sample_keypoints.c Execute keypoint detection task.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLKeypoint*	keypoint_meta	Output detected keypoint coordinates and confidence

5.31. TDL_DetectionKeypoint

【Syntax】

int32_t TDL_DetectionKeypoint(TDLHandle handle,
                                              const TDLModel model_id,
                                              TDLImage image_handle,
                                              TDLObject *object_meta,
                                              TDLImage *crop_image_handle);

【Description】

Perform key point detection (cropping according to the target’s coordinates before performing key point detection). If object_meta contains frame information, therefore , in order to improve image accuracy, it is best to call TDL_Detection before using this API. To obtain the target block diagram information, please refer to tdl_sdk/sample/c/sample_detect_keypoints.c for details.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const TDLModel	model_id	Model type enumeration
Input	TDLImage	image_handle	TDLImageHandle object
Output	TDLObject*	object_meta	Output detected keypoint coordinates and confidence

5.32. TDL_IntrusionDetection

【Syntax】

int32_t TDL_IntrusionDetection(TDLHandle handle,
                                              TDLPoints *regions,
                                              TDLBox *box,
                                              bool *is_intrusion);

【Description】

Perform intrusion detection. For details, see tdl_sdk/sample/c/sample_intrusion_detection.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	TDLPoints*	regions	Background region point set array
Input	TDLBox*	box	Detection region bbox
Output	bool*	is_intrusion	Output intrusion detection result

5.33. TDL_MotionDetection

【Syntax】

int32_t TDL_MotionDetection(TDLHandle handle,
                                           TDLImage background,
                                           TDLImage detect_image,
                                           TDLObject *roi,
                                           uint8_t threshold,
                                           double min_area,
                                           TDLObject *obj_meta);

【Description】

Perform motion detection tasks. For details, please refer to tdl_sdk/sample/c/sample_motion_detection.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	TDLImage	background	Background image
Input	TDLImage	detect_image	Detection image
Input	TDLObject*	roi	Detection region
Input	uint8_t	threshold	Threshold value
Input	double	min_area	Minimum area
Output	TDLObject*	obj_meta	Output detection results

5.34. TDL_APP_Init

【Syntax】

int32_t TDL_APP_Init(TDLHandle handle,
                                  const char *task,
                                  const char *config_file,
                                  char ***channel_names,
                                  uint8_t *channel_size);

【Description】

Initialize APP tasks, execute snapshots, customer flow counting and other complex scenarios. Model configuration parameters are mainly configured in config_file. For a specific example, please refer to tdl_sdk/sample/c/camera/sample_vi_face_pet_cap.c.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const char*	task	APP task name
Input	const char*	config_file	APP json configuration file path
Output	char***	channel_names	Name information for each video stream
Output	uint8_t*	channel_size	Number of video streams

5.35. TDL_APP_SetFrame

【Syntax】

int32_t TDL_APP_SetFrame(TDLHandle handle,
                                          const char *channel_name,
                                          TDLImage image_handle,
                                          uint64_t frame_id,
                                          int buffer_size);

【Description】

Send frame to APP.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const char*	channel_name	Current channel name
Input	TDLImage	image_handle	TDLImageHandle object
Input	uint64_t	frame_id	Frame ID of current TDLImageHandle object
Input	int	buffer_size	Number of frames cached by inference thread

5.36. TDL_APP_Capture

【Syntax】

int32_t TDL_APP_Capture(TDLHandle handle,
                                        const char *channel_name,
                                        TDLCaptureInfo *capture_info);

【Description】

Execute face capture task.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	TDLHandle object
Input	const char*	channel_name	Current channel name
Output	TDLCaptureInfo*	capture_info	Capture results

5.37. TDL_APP_ObjectCounting

【Syntax】

int32_t TDL_APP_ObjectCounting(TDLHandle handle,
                                                  const char *channel_name,
                                                  TDLObjectCountingInfo *object_counting_info);

【Description】

Execute customer flow counting (TDL_APP_Init task is consumer_counting) or cross-border detection task (TDL_APP_Init task is cross_detection)

【Parameters】

	Data Type	Parameter Name	Description
Input	const char*	channel_name	Current channel name
Input	TDLObjectCountingInfo*	object_counting_info	Detection results

5.38. TDL_APP_ObjectCountingSetLine

【Syntax】

int32_t TDL_APP_ObjectCountingSetLine(TDLHandle handle,
                                                            const char *channel_name, int x1,
                                                            int y1, int x2, int y2, int mode);

【Description】

Reset the line position during passenger counting or boundary crossing detection.

【Parameters】

	Data Type	Parameter Name	Description
Input	const char*	channel_name	Current channel name
Input	int	x1	Endpoint 1 horizontal coordinate
Input	int	y1	Endpoint 1 vertical coordinate
Input	int	x2	Endpoint 2 horizontal coordinate
Input	int	y2	Endpoint 2 vertical coordinate
Input	int	mode	For passenger flow counting: When mode is 0, for vertical lines, entering from left to right, for non-vertical lines, entering from top to bottom, and the opposite is true when mode is 1. For crossing detection: When mode is 0, for vertical lines, crossing from left to right, for non-vertical lines, crossing from top to bottom, and the opposite is true when mode is 1. Mode 2 is bidirectional detection

5.39. TDL_WrapImage

【Syntax】

int32_t TDL_WrapImage(TDLImage image,
                                    void *frame);

【Description】

Wrap TDLImage as VIDEO_FRAME_INFO_S.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLImage	image	TDLImageHandle object
Output	VIDEO_FRAME_INFO_S*	frame	Output parameter, stores the wrapped frame information

5.40. TDL_LLMApiCall

【Syntax】

int32_t TDL_LLMApiCall(TDLHandle handle, const char *client_type,
                                      const char *method_name, const char *params_json,
                                      char *result_buf, size_t buf_size)

【Description】

Invoke a specific LLM client method.

【Parameters】

	Data Type	Parameter Name	Description
Input	TDLHandle	handle	Context handle returned by TDL_CreateHandle
Input	const char*	client_type	Specifies the type of LLM client to invoke
Input	const char*	method_name	Name of the API method to call
Input	const char*	params_json	JSON-formatted request body string
Input	size_t	buf_size	Available size of result_buf in bytes
Output	char*	result_buf	Buffer for storing the returned JSON result or error message

6. TDL_SDK model deployment method

Makes it easier to integrate new models, the framework can help complete the following tasks:

• Image preprocessing: users only need to configure preprocessing parameters, and the framework will automatically call preprocessing equipment to implement preprocessing

• Model reasoning, no need to write any reasoning related code

• Memory management: the framework will automatically manage memory, so users don’t need to worry about memory leaks

6.1. Add new model files to existing model classes

The existing models have been shown in Chapter 3. If you need to add a new model file, you only need to add the corresponding new model ID in the model factory for easy calling. The steps are as follows:

1. Add the model_id of the new model in tdl_sdk/install/CV184X/include/nn/tdl_model_list.h ;

2. Add the new model creation function in tdl_sdk/src/components/nn/tdl_model_factory.cpp;

3. Add the configuration information of the new model in tdl_sdk/configs/model/model_factory.json.

6.2. Integrating new model types

1. In the tdl_sdk/src/componets/nn directory, select the appropriate folder based on the task type of the new model. If no matching folder exists, create a new folder for that task type.

2. Add the header file and source file of the new model to the folder. The header file is derived from tdl_sdk/include/framework/model/base_model.hpp, and the source file implements the function tdl_sdk/include/framework/model/base_model.hpp.

3. Create a new model ID in tdl_sdk/include/nn/tdl_model_list.h;

4. Add the creation function of the new model in tdl_sdk/src/components/nn/tdl_model_factory.cpp;

5. Add the configuration information of the new model in tdl_sdk/configs/model/model_factory.json;

6. For YOLO series model compilation, please refer to the document “YOLO Series Development Guide”. For other types of models, compile them directly according to the standard process.

7. How to use TDL_SDK c sample

The following examples all use the cv181x board as an example. Please update the model to suit your actual situation.

7.1. sample_character_recognition

Used for license plate recognition scenarios, it supports inputting license plate images and outputting the recognized license plate character text information. The operation method is as follows :

./sample_character_recognition --m ./cv181x/recognition_license_plate_24_96_MIX_cv181x.cvimodel -i ./license_plate_keypoints_0.jpg
// -m input model -i input image

The input image is a license plate image, and the result will be printed on the serial port as txt info: 闽D999PN

7.2. sample_classification

It is used for sound classification and image classification scenarios. It supports input of audio bin files or image files and outputs their category information and confidence scores. The operation mode of audio recognition is as follows:

./sample_classification -m ./cv181x/baby_cry_cnn10_188_40_INT8_cv181x.cvimodel -b ./test_inputs/laugh_1_m4a_3_1.bin -r 16000 -t 3
// -m input model -b input audio bin file -r sampling rate -t audio duration

Input a piece of audio data, as well as the sampling rate and duration of the audio data. The routine will recognize the audio and output its score.

Image recognition works like this:

./sample_classification -m ./cv181x/cls_hand_gesture_128_128_INT8_cv181x.cvimodel -i ./test_inputs/hand_two.jpg
// -m input model -i input image

Here we take gesture recognition as an example. Input a gesture image and it will output the gesture and its score. The specific serial port printout is as follows

pred_lable: 0, score = 0.964321

7.3. sample_detect_keypoints

It is used for multi-target key point detection scenarios, supports inputting a single image, and outputs key point coordinate information of hands, license plates, or human postures. The operation method is as follows :

./sample_detect_keypoints -m./cv181x/hand_detection_yolov8n_mv3_050_INT8_cv181x.cvimodel,./cv181x/keypoint_hand_128_128_INT8_cv181x.cvimodel -i ./test_inputs/hand.jpg -o out_d.jpg,out_c.jpg
// -m input model, this sample needs to input two models, one is the detection model and the other is the key point model
// -i input image
// -o outputs the image, which can be omitted. Outputs two images, one is the original image of the detected frame, and the other is the cropped image

Input a hand image here, and the algorithm will identify its key points. The key points here are the scale coefficients, and multiplying them by the corresponding length and width will give the coordinate points.

obj_meta id: 0, [x, y]: 0.667969, 0.796875
obj_meta id: 0, [x, y]: 0.726562, 0.683594
obj_meta id: 0, [x, y]: 0.683594, 0.570312
obj_meta id: 0, [x, y]: 0.578125, 0.531250
obj_meta id: 0, [x, y]: 0.484375, 0.523438
obj_meta id: 0, [x, y]: 0.578125, 0.451172
obj_meta id: 0, [x, y]: 0.546875, 0.314453
obj_meta id: 0, [x, y]: 0.539062, 0.225586
obj_meta id: 0, [x, y]: 0.523438, 0.153320
obj_meta id: 0, [x, y]: 0.484375, 0.500000
obj_meta id: 0, [x, y]: 0.345703, 0.386719
obj_meta id: 0, [x, y]: 0.250000, 0.314453
obj_meta id: 0, [x, y]: 0.168945, 0.257812
obj_meta id: 0, [x, y]: 0.427734, 0.570312
obj_meta id: 0, [x, y]: 0.322266, 0.500000
obj_meta id: 0, [x, y]: 0.427734, 0.539062
obj_meta id: 0, [x, y]: 0.500000, 0.578125
obj_meta id: 0, [x, y]: 0.386719, 0.652344
obj_meta id: 0, [x, y]: 0.330078, 0.597656
obj_meta id: 0, [x, y]: 0.417969, 0.605469
obj_meta id: 0, [x, y]: 0.484375, 0.628906

The following pictures show how to mark images based on key points:

7.4. sample_keypoints

It is used for multi-type key point detection, supports inputting a single picture, and outputs key point coordinate information of hand /license plate/human posture and visual annotation images. Unlike sample_detect_keypoints, this interface requires a cropped image as input. The operation is as follows:

./sample_keypoints -m ./cv181x/keypoint_hand_128_128_INT8_cv181x.cvimodel -i ./test_inputs/hand.jpg -o out.jpg
// -m input model -i input image -o output image, you can leave it blank

Here we input a hand image, and the algorithm will identify its key points. The image marked according to the key points is as follows:

7.5. sample_face_attribute

Used for face detection and attribute analysis scenarios, it supports inputting a single image and outputting face location and attribute information such as gender, age, glasses, and masks. The operation method is as follows :

./sample_face_attribute -m ./cv181x/scrfd_500m_bnkps_432_768.cvimodel,./cv181x/face_attribute_cls.cvimodel -i ./test_inputs/face.jpg
// -m input model, this sample needs to input two models, namely face detection and face attribute recognition
// -i input image

Here we input a face image, and the algorithm will recognize the various attributes of the face into the image and the results are as follows:

gender score: 0.992188, age score: 0.640625, glass score: 0.992188, mask score: 0.000000
Gender:Male
Age:Male
Glass: Yes
Mask: no

7.6. sample_face_detection

It is used for general face detection. It supports inputting a single image and outputting the result image with the face detection frame marked. It also outputs the xy coordinates of the upper left corner and the lower right corner of the face frame, as well as the confidence score. It runs as follows:

./sample_face_detection -i ./test_inputs/face.jpg -m ./cv181x/scrfd_det_face_432_768_INT8_cv181x.cvimodel -o ./test_inputs/face_det.jpg
// -m input model -i input image -o output image, you can leave it blank

Here we input a face picture and mark the face according to the output frame diagram

7.7. sample_feature_extraction

Used for face comparison scenarios, it supports inputting two face images and outputting their similarity scores and intermediate processing result images. The operation method is as follows :

./sample_face_landmark -m ./cv181x/keypoint_face_v2_64_64_INT8_cv181x.cvimodel -i ./test_inputs/face.jpg
// -m input model -i input image

Two images are input here for comparison after feature extraction. When two identical images are input, the similarity is 1.

similarity is 1.000000

7.8. sample_face_landmark

It is used for facial key point detection scenarios and outputs the image blur score and the coordinates of the five facial key points. The operation method is as follows :

./sample_face_landmark -m ./cv181x/keypoint_face_v2_64_64_INT8_cv181x.cvimodel -i ./test_inputs/face.jpg
// -m input model -i input image

Based on the input image, the serial port will output key point information

landmarks id : 0, landmarks x : 43.531250, landmarks y : 51.625000
landmarks id : 1, landmarks x : 73.500000, landmarks y : 51.625000
landmarks id : 2, landmarks x : 63.875000, landmarks y : 65.187500
landmarks id : 3, landmarks x : 45.937500, landmarks y : 82.250000
landmarks id : 4, landmarks x : 68.687500, landmarks y : 81.375000

7.9. sample_instance_segmentation

It is used for instance segmentation scenes. It inputs an image data and outputs the coordinate box and contour coordinate points of each instance. The operation method is as follows :

./sample_instance_segmentation -i ./test_inputs/coco.jpg -o ./test_inputs/coco_o.jpg -m ./cv181x/segmentation_yolov8n_640_640_INT8_cv181x.cvimodel
// -m input model -i input image -o output image, you can leave it blank

Enter a picture here and the algorithm will segment it

7.10. sample_lane_detection

It is used for lane line detection scenarios, supports inputting road images, and outputs the detected lane line coordinate information. The operation method is as follows :

./sample_lane_detection -m ./cv181x/lstr_det_lane_360_640_MIX_cv181x.cvimodel -i ./test_inputs/result.jpg -o ./out.jpg
// -m input model -i input image -o output image, you can leave it blank

Here we input a lane line picture, and the serial port will print the lane line information:

lane 0
0: 506.925018 432.000031
1: 362.094147 576.000000
lane 1
0: 815.652710 432.000031
1: 1038.046509 576.000000

Label the image based on the results:

7.11. sample_object_detection

For general target detection sample, output the xy coordinates of the upper left corner and the lower right corner of the target box, category and confidence. For specific models that are compatible, please refer to get_od_model_info in sample_object_detection.c . The operation method is as follows:

./sample_object_detection -m ./cv181x/coco80_detection_yolov10n_640_640_INT8_cv181x.cvimodel -i ./test_inputs/coco.jpg -o ./out.jpg
// -m input model -i input image -o output image, you can leave it blank

Enter a picture here, and the serial port will print the recognized object category and block diagram

obj_meta_index: 0, class_id: 0, score: 0.943986, boxx: [2.527201 327.880676 226.529968 507.681152]
obj_meta_index: 1, class_id: 0, score: 0.918415, boxx: [740.277466 1285.450562 171.033188 427.008545]
obj_meta_index: 2, class_id: 4, score: 0.850404, boxx: [738.621460 834.782410 348.960632 586.001221]
obj_meta_index: 3, class_id: 4, score: 0.800627, boxx: [669.198853 750.732361 284.652740 555.387817]

Label the image based on the results:

7.12. sample_pose

It is used for human pose estimation. It supports inputting a single image, outputting the coordinates of 17 key points of the human body and skeleton connection information, and generating a visual result graph with key points and skeleton annotations. The operation method is as follows:

./sample_pose -m ./cv181x/keypoint_yolov8pose_person17_384_640_INT8_cv181x.cvimodel -i ./test_inputs/person.jpg -o ./test_inputs/person_out.jpg
// -m input model -i input image -o output image, you can leave it blank

Enter a picture here, and the serial port will display the coordinate points and scores of the posture

obj_meta_index: 0, class_id: 0[79270.104763], score: 0.934758, bbox: [45.138302 249.390228 102.585884 354.314575]
pose: 0: 142.950653 160.520309 0.980407
pose: 1: 149.029053 148.363525 0.924847
pose: 2: 124.715469 148.363525 0.962615
pose: 3: 161.185822 154.441910 0.573295
pose: 4: 100.401848 166.598709 0.814048
pose: 5: 197.656219 221.304276 0.962615
pose: 6: 82.166672 245.617874 0.986373
pose: 7: 228.048203 324.637054 0.802613
pose: 8: 63.931477 336.793823 0.924847
pose: 9: 136.872238 342.872223 0.778173
pose: 10: 88.245079 257.774658 0.901571
pose: 11: 191.577805 379.342621 0.573295
pose: 12: 112.558662 391.499390 0.676617
pose: 13: 161.185822 403.656189 0.070180
pose: 14: 100.401848 397.577789 0.098429
pose: 15: 100.401848 391.499390 0.012670
pose: 16: 106.480255 367.185822 0.015762

Label the image based on the results:

7.13. sample_semantic_segmentation

It is used for semantic segmentation scenarios. It inputs an image and outputs the category information of each pixel. The operation is as follows :

./sample_semantic_segmentation -m ./cv181x/topformer_seg_person_face_vehicle_384_640_INT8_cv181x.cvimodel -i ./test_inputs/topformer.jpg -o out.jpg
// -m input model -i input image -o output image, you can leave it blank

Enter a picture here, and the serial port will print the category corresponding to each pixel point in the image

7.14. sample_tracking

Track the input image group. The operation is as follows :

./sample_tracking -m ./cv181x/scrfd_det_face_432_768_INT8_cv181x.cvimodel,./cv181x/mbv2_det_person_512_896_INT8_cv181x.cvimodel -i input -o output
// -m input model, this sample needs to input two models, namely face detection and pedestrian detection
// -i inputs the image folder, which contains a group of pictures. The pictures need to be arranged in the order of xxx_001.jpg, xxx_002.jpg, as shown below
// -o output image folder

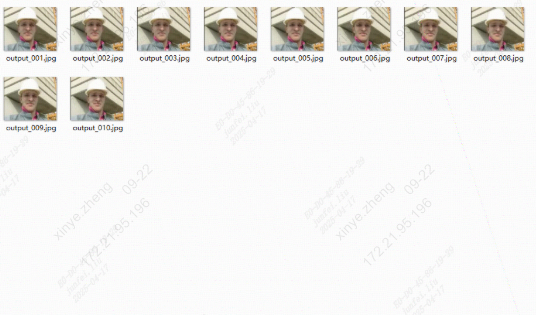

Example of input image group:

Example of input image group:

7.15. sample_face_recognition

Recognize faces and perform feature matching: face detection -> facial feature point extraction -> facial feature value extraction -> feature point comparison. The operation is as follows:

./sample_face_recognition -m ./cv181x/scrfd_det_face_432_768_INT8_cv181x.cvimodel,./cv181x/key point_face_v2_64_64_INT8_cv181x.cvimodel,./cv181x/feature_cviface_112_112_INT8_cv181x.cvimodel -i ./test_inputs/face.jpg,./test_inputs/face.jpg -c ./model_factory.json
// -m input model, this sample needs to input three models, namely face detection, facial feature points, and facial feature values
// -i input image, this sample needs to input two images for face comparison after extracting eigenvalues
// -c config parameter, records the parameter settings of the model

Input two identical images and the obtained eigenvalues are similar.

similarity is 1.000000

7.16. sample_licence_recognition

License plate recognition: detection -> key points -> recognition, supporting multiple license plates per image. The operation is as follows:

./sample_licence_recognition -m ./cv181x/yolov8n_det_license_plate_384_640_INT8_cv181x.cvimodel,./cv181x/keypoint_license_pl ate_64_128_INT8_cv181x.cvimodel,./cv181x/recognition_license_plate_24_96_MIX_cv181x.cvimodel -i ./test_inputs/out_vertical_cv.jpg
// -m input model, this sample needs to input three models, namely license plate detection, license plate key points, and license plate recognition
// -i input image

Here is an input image containing two license plates:

The serial port will print the following:

id = 0, txt info: MinD999PN
id = 1, txt info: MinD999PN

7.17. sample_vi_detection

Connect the camera for object recognition. Place sensor_cfg.ini (the sensor configuration file can be obtained by contacting the developer) in the /mnt/data directory and run the following command:

./sample_vi_detection -m ./cv181x/yolov8n_det_hand_384_640_INT8_cv181x.cvimodel -c 0
// -m input model, the example here is hand detection
// -c vi chn is 0 for a single sensor
// -f config parameter, records the parameter settings of the model, which can be omitted

Here we take hand detection as an example, and the information of the detected hand will be printed out.

obj_meta_index : 0, class_id : 0, score : 0.861538, bbox : [260.416077 601.567139 103.850037 312.489624]

7.18. sample_vi_face_pet_cap

Connect the camera to capture faces and pets. If the -g parameter is entered, feature point recognition will be performed. If the -o parameter is entered, the captured image will be saved.

//json file parsing, during use, model_dir and model_config must be modified according to the actual situation
{
"model_dir": "/mnt/sd/models/", // The model path will automatically match cv181x, cv184x, etc., so the actual model path is /mnt/sd/models/cv181x. Here, the model must be placed in the cv181x folder (modified according to the board type) first, and then placed in the model_dir path
"model_config": "/mnt/sd/configs/model/model_factory.json", //Model parameter file
"frame_buffer_size": 1,
"pipelines": [
{
"name": "face_pet_cap",
"nodes": {
"object_detection_node": {
"config_thresh": 0.5
},
"track_node": {
"fuse_track": true
},
"snapshot_node": { //Snapshot parameters
"snapshot_interval": 5,
"min_snapshot_size": 40,
"crop_size_min": 128,
"crop_size_max": 256,
"snapshot_quality_threshold": 0,
"crop_square": true
}
}
}
]
}

The gallery folder is not provided in tdl and needs to be generated by yourself. Note that it must be in the format of 0.bin, 1.bin, etc. The feature value can be obtained using TDL_FeatureExtraction (parameters of TDL_FeatureExtraction above), It can also be obtained from the TDLCaptureInfo structure in this sample, after TDL_APP_Capture. If a face is recognized, the prt in the TDLFeature parameter in TDLCaptureInfo will record the feature value and save it as a file. The following figure is a reference

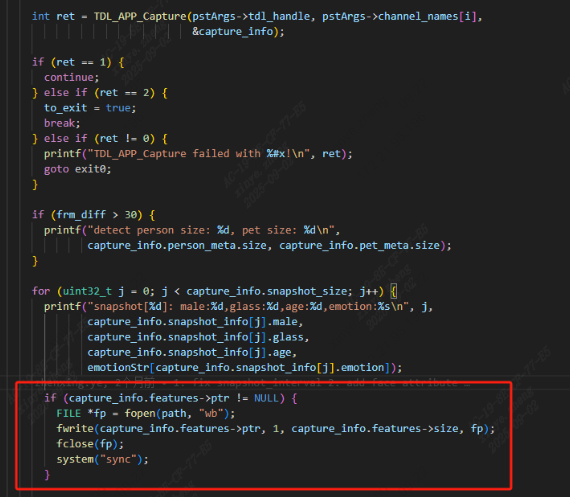

Place sensor_cfg.ini (the sensor configuration file can be obtained by contacting the developer) in the /mnt/data directory and run the following command

./sample_vi_face_pet_cap -c ./config/face_pet_cap_app.json -v 0 -g ./ipcamera/gallery/ -o out
// -m configures the json file to record which functions to use
// -v vi chn is 0 for a single sensor
// -g eigenvalue database, you can leave it blank
// -o output folder, you can leave it blank

7.19. sample_vi_consumer_counting

Connect a camera to count the number of people who visit your site. The operation is as follows :

./sample_vi_consumer_counting -c ./config/consumer_counting_app_vi.json -v 0

The output is as follows:

enter: 0, miss: 0
+++++++++++++++++++++++++++++ frame:124, infer time:40.00, fps: 25.00

7.20. sample_vi_cross_detection

Connect a camera for intrusion detection. Here’s how it works :

./sample_vi_cross_detection -c ./config/cross_detection_app_vi.json -v 0

The output is as follows:

cross num: 0
+++++++++++++++++++++++++++++++ frame:62, infer time:40.00, fps: 25.00

7.21. sample_vi_single_object_tracking

Connect the camera for monocular tracking, and TDL_Detection detects the target when the program starts running. When you need to track an object or an area, press I or i to enter the parameters. You can enter the box id (range 0 - bj_meta.size), the box coordinates (x1, y1, x2, y2) or a coordinate point (x, y); After the input is completed, the target is tracked. If the target is lost for more than 5 seconds, the TDL_Detection detection phase is resumed. Here’s how to run it :

./sample_vi_single_object_tracking -d ./cv181x/yolov8n_det_person_vehicle_384_640_INT8_cv181x.cvimodel -s ./cv181x/tracking_feartrack_128_128_256_256_INT8_cv181x.cvimodel
// -d detection model -s tracking model

The output is as follows:

Usage: input i or I to start tracking......
Enter bbox x1,y1,x2,y2 or a point x,y or bbox index to track:
0 //Track target with id 0
values[0] = 0
The target has been lost for more than 5 seconds, switching to detection state //When the target is lost for more than 5 seconds, return to the detection state
Usage: input i or I to start tracking......

7.22. sample_motion_detection

Motion detection takes a background image and a detection image as input. The operation is as follows :

./sample_motion_detection ./test_inputs/ir.jpg ./test_inputs/ir.jpg

The output is as follows:

Running motion detection with images:
Background: ./test_inputs/ir.jpg
Detect: ./test_inputs/ir.jpg
Setting ROI regions...
Begin motion detection...
Detection completed

7.23. sample_intrusion_detection

Intrusion detection. It works as follows :

./sample_intrusion_detection

The output is as follows:

=============Rectangular Area Test=============
==== Rectangular Area ====
Points: 4
Point 0: (100.00, 100.00)
Point 1: (300.00, 100.00)
Point 2: (300.00, 200.00)
Point 3: (100.00, 200.00)

Internal Bounding Box Detection: Intrusion
External bounding box detection: No intrusion

=============Concave Polygon Area Test=============
==== Concave Polygonal Area ====
Points: 6
Point 0: (100.00, 100.00)
Point 1: (200.00, 50.00)
Point 2: (300.00, 100.00)
Point 3: (250.00, 150.00)
Point 4: (200.00, 120.00)
Point 5: (150.00, 150.00)

Internal Bounding Box Detection: Intrusion
External bounding box detection: No intrusion

Testing completed!

8. Frequently Asked Questions

8.1. Model opening failure issues

1. Lack of model_config_json

[tdl_model_factory.cpp:80] [I] input model config file is empty, load model config from /configs/model/model_factory.json
[tdl_model_factory.cpp:87] [E] model config file not found: /configs/model/model_factory.json
[tdl_model_factory.cpp:238] [E] model config not found for model type: YOLOV8N_DET_PERSON_VEHICLE
[tdl_model_factory.cpp:248] [I] getModelInstance model_type:YOLOV8N_DET_PERSON_VEHICLE
[tdl_model_factory.cpp:526] [I] createObjectDetectionModel success,model type:5,category:0
[tdl_model_factory.cpp:831] [I] model_path: ./cv184x/yolov8n_det_person_vehicle_384_640_INT8_cv181x.cvimodel
[tdl_model_factory.cpp:238] [E] model config not found for model type: TRACKING_FEARTRACK
[tdl_model_factory.cpp:248] [I] getModelInstance model_type:TRACKING_FEARTRACK
[tdl_model_factory.cpp:831] [I] model_path: ./tracking_feartrack_128_128_256_256_INT8_cv181x.cvimodel
[base_model.cpp:159] [E] mean or std size is not 3
[base_model.cpp:42] [E] Net setup failed

It can be seen that the parameters lack mean and std. This is because the model_config_json parameter is not passed when calling TDL_OpenModel. Most proprietary models do not need to be passed in. Some common models, such as feature extraction and voice commands, require model configuration information to be passed in. Please refer to configs/model/model_config.json.
